POWER DISTRIBUTION BOARDS

Distribution boards make an essential part of any circuitry in your homes, offices or any other place. They serve an important purpose and cannot be ignored at any cost. One of the most important devices, they make sure that the current is properly distributed to all the devices allowing proper functioning. This also makes sure that none of the devices suffer from the effects of over currents or short circuits.

They fit in perfectly with the interiors of your homes, adding to the aesthetics. Available in different colors, the designer DBs serve a dual purpose. They not only save you from the harmful effects of current but also make your walls magnificent. The horizontal and vertical DBs give you the flexibility to choose the ones that are right for you.

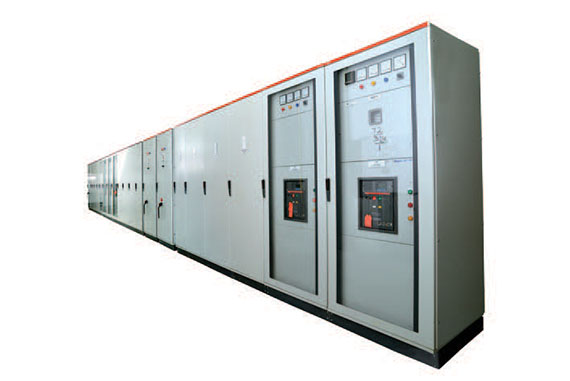

LV Panels

Ratings at 50°C ambient	Up to 4000A
Short Circuit Rating	Up to Icw – 65kA 3 sec Ipk – 143kA
Form of Construction	Form 2A & B / Form 3A & B / Form 4A & B
Protection Class	Up to IP65 & IK10
Type Testing & Certifications	Fully type Tested including internal arc Test & ASTA Certified.
Standards	IEC – 61439 – 1 & 2

Withdrawable execution for rating upto 800A, 35kA, 1 sec (available upon request)

SMDB’s

Ratings at 50°C ambient	Up to 4000A
Short Circuit Rating	Up to Icw – 65kA 3 sec Ipk – 143kA
Form of Construction	Form 2A & B / Form 3A & B / Form 4A & B
Protection Class	Up to IP65 & IK10
Type Testing & Certifications	Fully type Tested & ASTA Certified.
Standards	IEC – 61439 – 1 & 2

Withdrawable execution for rating upto 800A, 35kA, 1 sec (available upon request)

Automatic Transfer Switch with and without By pass

Ratings at 50°C ambient	Up to 4000A
Short Circuit Rating	Up to Icw – 65kA 3 sec Ipk – 143kA
Form of Construction	Form 2A & B / Form 3A & B / Form 4A & B
Protection Class	Up to IP65 & IK10
Type Testing & Certifications	Fully type Tested & ASTA Certified.
Standards	IEC – 61439 – 1 & 2

Feeder Pillars and LCP’s

Ratings at 50°C ambient	Up to 800A. (Other ratings on request)
Short Circuit Rating	Up to Icw – 50kA 1 sec
Form of Construction	Form 2
Protection Class	Up to IP65
Type Testing & Certifications	Fully type Tested & ASTA Certified
Standards	IEC – 61439 – 1 & 2

DC Distribution Boards

Ratings at 50°C ambient	Up to 4000A
Form of Construction	Form 2, 3 & 4
Protection Class	Up to IP65
Standards	IEC – 61439 – 1 & 2

Final Distribution Boards (Row type, Single or Multi Split Configurations)

Ratings at 50°C ambient	Up to 250A
Short Circuit Rating	Icw 17kA for 0.25 secs; Ipk 34 kA
Protection Class	IP41, 55 & 65
Type Testing & Certifications	Fully type Tested & ASTA Certified
Standards	IEC – 61439 – 2

400Hz Panel for Aviation Applications

Ratings at 50°C ambient	Up to 800A. (Other ratings on request)
Short Circuit Rating	Upto Icw – 50kA 1 sec
Protection Class	Form 2
Type Testing & Certifications	Up to IP65
Standards	IEC – 61439 – 1 & 2
